SLAYER ESPRESSO


Super Jolly Electronic

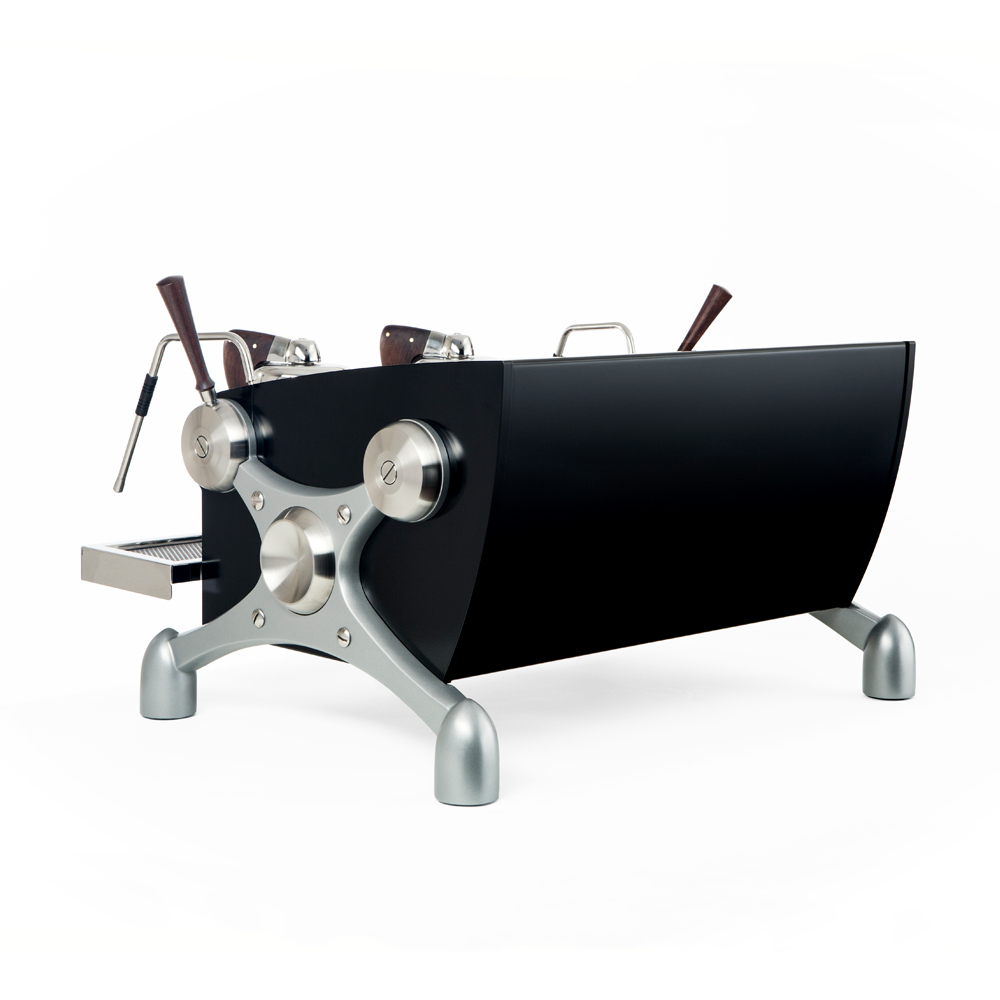

ABOUT this machine


Slayer is a powerful Industrial Craft-built machine with virtually endless steam capacity plus brew temperature stability on multiple groups even during maximum volume use.  Steam and brew systems are supplied with preconditioned water at 180 degrees F.  All heating is provided by fail-resistant incoloy elements.  Temperature control is maintained by purpose-tuned PID.  Slayer’s brewing system includes both mechanical and electronic components to enable discreet pressure control across the brew band.

Slayer is a professional espresso machine, built to defy the highest demand and thrive under the command of the world’s best baristas. It offers unlimited steam capacity, ultimate temperature stability, and unmatched control of the extraction process. This is what keeps it all going.


TECHNICAL SPECIFICATIONS

Weights & Dimensions
  • 3-group
    • Width: 40 in / 101.6 cm
    • Depth: 22 in / 55.9 cm*
    • Height: 17 in / 43.2 cm
    • Weight: 270 lb / 122.5 kg
  • 2-group
    • Width: 31 in / 78.7 cm
    • Depth: 22 in / 55.9 cm*
    • Height: 17 in / 43.2 cm
    • Weight: 200 lb / 90.7 kg
  • 1-group
    • Width
      • Body: 15.5 in / 39.4 cm
      • Foot to foot: 18.3 in / 46.5 cm
    •  Depth
      • Foot to foot: 18.1 in / 46.0 cm
      • Foot to drip tray: 21.5 in / 54.6 cm
      • Rear panel (top) to disengaged steam actuator (top): 11.5 in / 29.2 cm
    • Height
      • Top of rear panel: 12.9 in / 32.7 cm
      • Top of brew actuator: 13.4 in / 34.0 cm
      • Top of engaged steam actuator: 15.0 in / 38.1 cm
      • Group height, drip tray to portafilter: 4.5 in / 11.4 cm
    •  Weight: 100 lb / 45.45 kg

* Add 2.5 in / 6.4 cm for group hangover at front


Boiler Capacities
  • 3-group
    • Steam tank: 12 L
    • Brew tank: 1.23 L per group
    • Pre-heat tank: 5.4 L
  • 2-group
    • Steam tank: 7.4 L
    • Brew tank: 1.23 L per group
    • Pre-heat tank: 3.3 L
  • 1-group
    • Steam tank: 3.3 L
    • Brew tank: 1.1 L
    • Pre-heat coil: 60 mL

Power & Electric
  • Requirements
    • 3-group: 40 A
    • 2-group: 30 A
    • 1-group: 110 V / 15 A or 220 V / 10 A
  • Heating elements
    • 3-group
      • Steam tank: 4,500 W
      • Brew tank: 600 W per group
      • Pre-heat tank: 2,000 W
    • 2-group
      • Steam tank: 3,500 W
      • Brew tank: 600 W per group
      • Pre-heat tank: 1,000 W
    • 1-group
      • Steam tank: 1,300 W for 110 V; 2,000 W for 220 V
      • Brew tank: 600 W
      • Pre-heat tank: N/A
